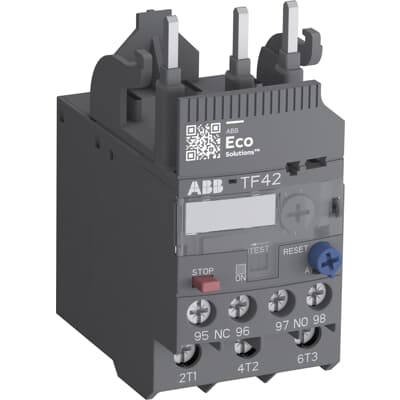

ABB TF42-0.13 Thermal Overload Relay | 0.10A to 0.13A, Class 10

1SAZ721201R1005
ABB TF42-0.13 is an economical and reliable protection device for the main circuit. It is designed to protect small motors and sensitive electrical loads in the event of overload or phase failure. With a precise setting range of 0.10 to 0.13 Amperes, this relay is a critical safety component for specialized low-power industrial equipment.

Key Technical Features:

Bimetallic Protection: Features a Class 10 trip characteristic for dependable thermal protection.

Temperature Compensation: Operates accurately in ambient temperatures ranging from -25°C to +60°C.

Phase Failure Sensitivity: Built-in mechanism to detect phase loss, preventing motor damage under unbalanced conditions.

Multifunctional Reset: Includes a Reset button that can be switched between Manual and Automatic modes, plus a Test and Stop function.

Direct Contactor Mounting: Designed to plug directly into the load side of AF09, AF12, AF16, AF26, AF30, and AF38 3-pole contactors.
