1SBL137001R1310
ABB AF09-30-10-13 is a high-performance 3-pole contactor designed for reliable motor control and power switching. Featuring an advanced electronic coil interface, it handles wide control voltages ranging from 100V to 250V AC/DC, ensuring stable operation even during voltage fluctuations.

Key Features:

-Built-in Surge Suppression: Protects your circuits without extra accessories.
-Versatile Application: Ideal for managing motors up to 4kW (400V) or switching loads up to 25A (AC-1).
-Compact Design: Includes 1 Built-in Normally Open (NO) auxiliary contact.

Energy Efficient: Reduced coil consumption compared to conventional contactors.

1SFL427001R1300
ABB AF116-30-00-13 is a high-performance 3-pole block contactor designed for large motor applications and power switching up to 55kW (400V). With a rated operational current of 116A (AC-3) and a resistive load capacity (AC-1) of 160A, it is the perfect solution for heavy-duty industrial infrastructure, large water pumps, and massive ventilation systems.

Key Technical Features:

Electronic Coil Technology: Features a wide control voltage range of 100V to 250V AC/DC, allowing for global compatibility and stable operation during voltage drops.

High Performance in Compact Size: Engineered for a reduced footprint in control panels without sacrificing switching power.

Standard Protection: Includes built-in surge suppression to safeguard your PLC and control system from electrical noise and spikes.

Modular Flexibility (00): This model is supplied without built-in auxiliary contacts, giving you the freedom to add side-mounted auxiliary contact blocks as per your specific design.

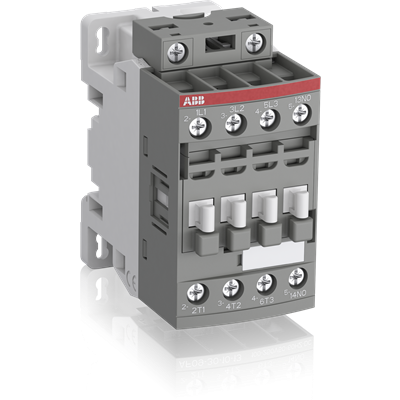

1SBL157001R1310
ABB AF12-30-10-13 is a reliable 3-pole contactor engineered for demanding industrial motor control. With a rated operational current of 12A and a power capacity of 5.5kW (400V), it is the perfect solution for medium-duty motor starting and power switching applications.

Key Performance Features:

Wide Control Voltage: The electronic coil operates seamlessly between 100V and 250V AC/DC, reducing the need for multiple variants.

Built-in Auxiliary Contact: Comes with 1 Normally Open (1NO) contact for easy status signaling.

Built-in Surge Protection: Integrated protection eliminates the need for external surge suppressors.

Industrial Standard: Complies with global standards for motor starters (AC-3) and resistive loads (AC-1 up to 28A).

1SBL177001R1310
ABB AF16-30-10-13 is a robust 3-pole contactor designed for efficient motor starting and power circuit control. With an operational current of 16A (AC-3) and a rated power of 7.5kW at 400V, it provides superior performance for industrial machinery and HVAC systems.

Key Technical Advantages:

Universal Coil Technology: Operates on a wide control voltage range of 100V to 250V AC/DC, effectively managing voltage sags and surges.

High Switching Capacity: Rated for AC-1 loads up to 30A, making it ideal for non-inductive or slightly inductive loads.

Integrated Design: Comes standard with 1 Normally Open (1NO) auxiliary contact and built-in surge suppression for maximum safety.

Reliable Performance: Engineered to reduce coil energy consumption by up to 80% compared to conventional AC contactors.

1SBL237001R1300
ABB AF26-30-00-13 is a powerful, compact 3-pole contactor designed for controlling motors up to 11kW (400V) and switching power circuits up to 45A (AC-1). Featuring ABB's pioneering AF technology, this contactor manages wide control voltages (100-250V AC/DC) with ease, making it a versatile global solution for industrial automation.

Why Choose the AF26-30-00-13?

Optimized for 11kW: Specifically rated for 26A (AC-3) to handle mid-sized industrial motor loads.

Smart Coil Technology: The electronic coil reduces energy consumption and ensures stable operation during voltage sags.

Zero Auxiliary Contacts (00): This "00" model is designed for setups where external auxiliary blocks (like the CA4 series) are preferred or where a smaller footprint is needed.

Integrated Safety: Built-in surge suppression comes standard, protecting your PLC and sensitive control circuits.

1SBL277001R1300
ABB AF30-30-00-13 is a heavy-duty 3-pole contactor engineered for reliable motor control and power switching in demanding industrial environments. Rated for 32A (AC-3) and capable of handling motors up to 15kW (400V), this contactor is the ideal choice for heavy-duty pumps, large fans, and industrial compressors.

Key Technical Features:

Wide Voltage Control: Equipped with an advanced electronic coil that operates smoothly across 100V to 250V AC/DC, eliminating the need for multiple inventory variants.

High Load Capacity: Rated for resistive loads (AC-1) up to 50A, providing robust performance for heating and lighting applications.

AF Technology Advantage: Features built-in surge suppression to protect sensitive PLC outputs and control circuits from voltage spikes.

Modular Build (00): No built-in auxiliary contacts, offering a slim profile that allows for the addition of side or front-mounted auxiliary blocks as needed.

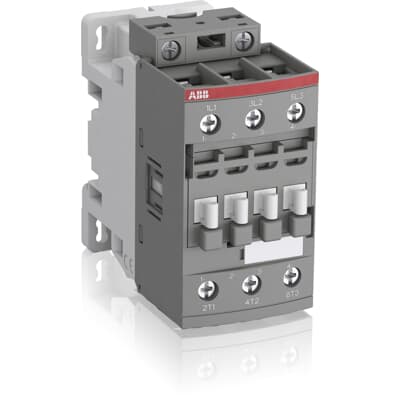

1SBL297001R1300
ABB AF38-30-00-13 is a premium 3-pole contactor engineered for heavy-duty motor control and power switching. Rated for 38A (AC-3) and capable of managing motors up to 18.5kW (400V), it provides robust performance for industrial machinery, large-scale HVAC systems, and pumping stations.

Key Technical Features:

Universal Control Voltage: Features an electronic coil interface that operates between 100V and 250V AC/DC, ensuring reliability during voltage fluctuations.

High Power Density: Capable of handling resistive loads (AC-1) up to 50A within a compact frame.

Integrated Protection: Built-in surge suppression comes standard to protect your control circuits and PLC outputs.

Modular Design (00): This model contains no built-in auxiliary contacts, allowing for custom configurations using front or side-mounted auxiliary blocks.

1SBL347001R1300
ABB AF40-30-00-13 is a high-performance 3-pole contactor designed for controlling power circuits and motors up to 18.5kW (400V). It is specifically engineered to handle a rated operational current of 40A (AC-3) and up to 70A (AC-1) for resistive loads, making it a versatile choice for industrial heating, pumping, and large ventilation systems.

Key Technical Features:

Advanced Electronic Coil: Operates seamlessly on any control voltage between 100V and 250V AC/DC, ensuring stable contact even in unstable power grids.

Superior Switching Capacity: Rated for heavy-duty applications with a focus on reducing energy consumption and heat dissipation.

Modular Configuration (00): Designed without built-in auxiliary contacts to provide a slim profile, allowing users to add specific auxiliary contact blocks as needed.

Built-in Surge Suppression: Features integrated protection against voltage spikes, eliminating the need for additional external suppressors.

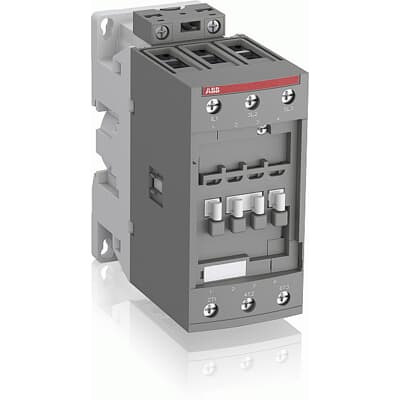

1SBL367001R1300
ABB AF52-30-00-13 is a robust 3-pole contactor designed for reliable power switching and motor control up to 22kW (400V). Rated for an operational current of 53A (AC-3) and up to 100A (AC-1) for resistive loads, it is an essential component for large industrial pumps, compressors, and power distribution panels.

Key Technical Features:

Wide Control Voltage: The advanced electronic coil handles fluctuations between 100V and 250V AC/DC, ensuring stable operation and reduced inventory.

Integrated Protection: Built-in surge suppression comes standard, protecting sensitive electronic controllers and PLC outputs without the need for additional accessories.

Modular "00" Design: Contains no built-in auxiliary contacts, offering a compact frame that allows for the easy addition of front or side-mounted auxiliary contact blocks.

Energy Efficiency: The AF technology reduces coil energy consumption, leading to lower heat dissipation and increased cabinet density.

1SBL387001R1300
ABB AF65-30-00-13 is a high-capacity 3-pole contactor engineered for reliable motor control and power switching in heavy industrial environments. Specifically rated for 65A (AC-3) and capable of managing motors up to 30kW (400V), it is the ideal choice for large-scale industrial pumps, refrigeration compressors, and heavy machinery.

Key Technical Features:

Universal Control Voltage: Equipped with an advanced electronic coil operating between 100V and 250V AC/DC, effectively managing voltage sags and surges.

Heavy-Duty Power Handling: Supports resistive loads (AC-1) up to 105A, providing robust performance for power distribution and heating applications.

Modular "00" Frame: Features a compact design with no built-in auxiliary contacts, allowing for total customization with front or side-mounted auxiliary contact blocks.

Integrated Safety: Standard built-in surge suppression protects sensitive PLC and control outputs without the need for additional external components.

1SBL397001R1300
ABB AF80-30-00-13 is a high-capacity 3-pole contactor engineered for reliable motor control and power switching in heavy industrial environments. Specifically rated for 80A (AC-3) and capable of managing motors up to 37kW (400V), it is the ideal choice for large-scale industrial pumps, refrigeration compressors, and heavy machinery.

Key Technical Features:

Universal Control Voltage: Equipped with an advanced electronic coil operating between 100V and 250V AC/DC, effectively managing voltage sags and surges.

Heavy-Duty Power Handling: Supports resistive loads (AC-1) up to 125A, providing robust performance for power distribution and heating applications.

Modular "00" Frame: Features a compact design with no built-in auxiliary contacts, allowing for total customization with front or side-mounted auxiliary contact blocks.

Integrated Safety: Standard built-in surge suppression protects sensitive PLC and control outputs without the need for additional external components.

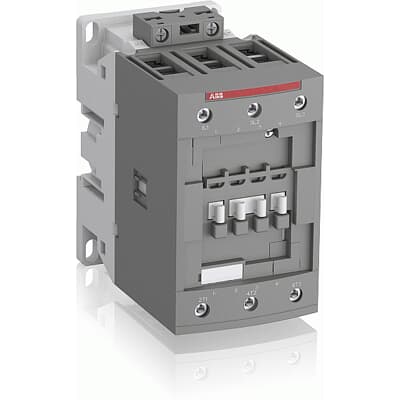

1SBL407001R1300
ABB AF96-30-00-13 is a high-performance 3-pole contactor engineered for heavy-duty motor control and power switching in demanding industrial environments. Specifically rated for 96A (AC-3) and capable of managing motors up to 45kW (400V), it is the premier choice for large-scale pumps, heavy machinery, and industrial compressors.

Key Technical Features:

Universal Control Voltage: Equipped with an advanced electronic coil that operates between 100V and 250V AC/DC, effectively managing voltage fluctuations and reducing inventory needs.

Heavy-Duty Power Handling: Supports resistive loads (AC-1) up to 130A, providing robust performance for power distribution and industrial heating.

Modular "00" Frame: Features a compact design with no built-in auxiliary contacts, allowing for total customization with front or side-mounted auxiliary contact blocks.

Integrated Safety: Standard built-in surge suppression protects sensitive PLC and control outputs without the need for additional external components.

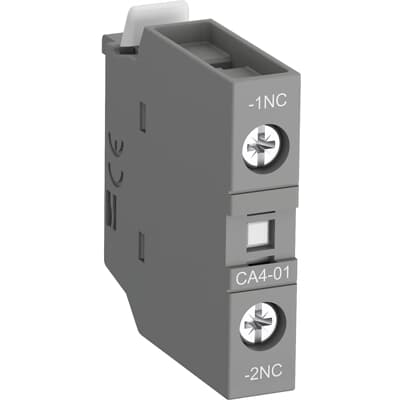

1SBN010110R1001
ABB CA4-01 is a high-quality, front-mounted auxiliary contact block designed for the ABB AF contactor range. Featuring 1 Normally Closed (1NC) contact, this component is critical for creating electrical interlocks between two contactors (such as in Star-Delta or Forward-Reverse starters) and providing status feedback to control systems.

Key Features:

Snap-On Mounting: Attaches instantly to the front of the contactor without tools, ensuring a secure and vibration-proof connection.

Safety Interlocking: The 1NC configuration is the industry standard for preventing two contactors from closing simultaneously.

Broad Compatibility: Fully compatible with the AF09 through AF96 series, as well as the larger AF116 to AF370 models.

Industrial Durability: Built to withstand high-frequency switching cycles in demanding industrial environments.

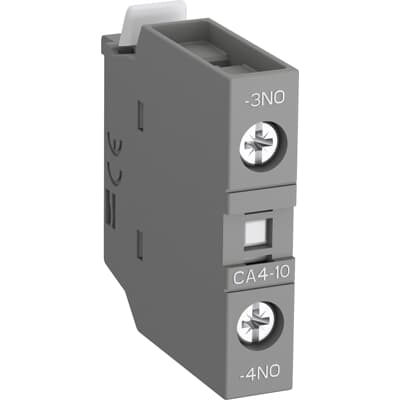

1SBN010110R1010
ABB CA4-10 is a high-reliability, front-mounted auxiliary contact block designed for use with ABB AF series contactors. It provides 1 Normally Open (1NO) contact, allowing you to easily add signaling, interlocking, or status feedback to your electrical control panels.

Key Features:

Easy Installation: Features a simple "snap-on" front mounting mechanism—no tools required.

Universal Compatibility: Works seamlessly with AF09, AF12, AF16, AF26, AF30, AF38, and larger AF series contactors.

Reliable Performance: Engineered for industrial endurance with high-quality contact materials to ensure clear signal transmission.

Space Efficient: Front mounting keeps the contactor's width slim, saving valuable DIN rail space in your cabinet.

1SBN010120R1011
ABB CAL4-11 is a versatile, side-mounted auxiliary contact block designed for the AF series contactors. It provides 1 Normally Open (1NO) and 1 Normally Closed (1NC) contact in a single compact housing. This accessory is essential for complex control logic, allowing for simultaneous status signaling and electrical interlocking.

Key Features:

Side-Mount Design: Snaps easily onto either the left or right side of the contactor, preserving the front face for other accessories.

Dual Contact Configuration: Combines both an NO and an NC contact, providing total flexibility for motor control circuits.

High-Speed Integration: Features a tool-free installation process for fast assembly in industrial control panels.

Universal AF Compatibility: Designed to fit ABB contactors ranging from AF09 up to AF96 and the larger AF116-AF370 series.

1SBN010151R1011
ABB CAT4-11E is a specialized front-mounted auxiliary contact block featuring 1 Normally Open (1NO) and 1 Normally Closed (1NC) contact. Uniquely, it incorporates A1 and A2 coil terminals on the front of the block, allowing for streamlined wiring and easier access during maintenance. This "E" version is engineered for a perfect fit and logical terminal alignment with ABB's AF09 to AF16 series contactors.

Key Technical Features:

Integrated Coil Access: Moves coil terminal connections to the front, eliminating the need to reach behind power cables.

Dual Signaling Contacts: Provides both NO and NC contacts for status feedback and electrical interlocking.

Simplified Panel Layout: Reduces the complexity of control wiring, making it ideal for compact motor starter assemblies.

Quick Installation: Features the ABB snap-on mounting system for secure, tool-free attachment.

1SBN010151R1111
ABB CAT4-11M is a premium front-mounted accessory designed for the ABB AF series contactors. It is uniquely engineered to provide both 1 Normally Open (1NO) and 1 Normally Closed (1NC) auxiliary contacts while also featuring integrated coil terminals. This "M" (Master) version is designed to allow easy access to the coil connections from the front of the unit, significantly tidying up control panel wiring.

Key Technical Features:

Dual Purpose: Provides signaling/interlocking contacts and coil connection points in a single block.

Front-Facing Wiring: Moves the A1 and A2 coil connections to the front for easier maintenance and clearer wire routing.

Seamless Integration: Designed specifically for AF09, AF12, AF16, AF26, AF30, and AF38 contactors.

Standard Industrial Quality: Built to withstand harsh environments with high mechanical and electrical endurance.

1SAX121001R1101
ABB EF19-0.32 is an advanced electronic overload relay designed for the most precise motor protection. With an adjustable setting range of 0.10 to 0.32 Amperes, it is specifically engineered to protect small motors against overloads and phase failures. Because it is electronic, it provides consistent trip classes (10E, 20E, 30E) and consumes significantly less energy than traditional thermal relays.

Key Technical Features:

Precision Protection: Offers a wide 3.2:1 setting range, allowing one device to cover multiple motor sizes.

Selectable Trip Classes: Choose between 10E, 20E, or 30E to match the starting characteristics of your specific load.

Phase Loss Sensitivity: Rapidly detects phase imbalance or failure to prevent motor burnout.

Self-Powered: No external power supply is required for the control circuit.

Direct Mounting: Designed for direct attachment to AF09, AF12, AF16, AF26, AF30, and AF38 contactors.

1SAX121001R1102
ABB EF19-1.0 is a high-performance electronic overload relay designed for the precise protection of small motors. Covering a setting range of 0.30A to 1.0A, this relay offers a modern alternative to traditional bimetallic thermal relays. Because it utilizes electronic sensing, it is not affected by ambient temperature, providing consistent and reliable tripping to prevent motor damage from overloads and phase failures.

Key Technical Features:

Superior Accuracy: Electronic current measurement provides tighter protection tolerances compared to standard thermal relays.

Selectable Trip Classes: Offers flexibility with adjustable trip classes (10E, 20E, 30E) to protect motors during difficult or heavy startups.

Phase Loss Protection: High sensitivity to phase imbalance ensures the motor is disconnected quickly if a phase is lost.

Energy Efficient: Designed with extremely low internal power consumption, reducing heat buildup inside your control cabinet.

Contactor Compatibility: Mounts directly to AF09, AF12, AF16, AF26, AF30, and AF38 3-pole contactors.

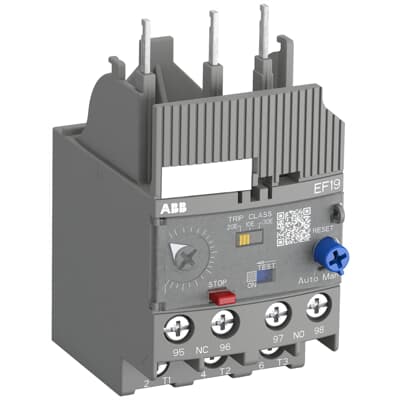

1SAX121001R1105
ABB EF19-18.9 is a self-supplied, high-accuracy electronic overload relay designed for the comprehensive protection of motors ranging from 5.70 to 18.90 Amperes. By utilizing advanced electronic sensing, it provides superior protection against overloads, phase failures, and phase imbalances. It is the ideal energy-efficient upgrade for control panels using ABB AF contactors.

Key Technical Features:

Broad Setting Range: A 3.3:1 adjustment ratio (5.7-18.9A) allows one unit to cover a wide variety of motor horsepowers.

Flexible Trip Class Selection: User-selectable trip classes (10E, 20E, 30E) ensure the relay can handle standard or heavy-duty motor starts without nuisance tripping.

Ambient Temperature Independence: Unlike thermal relays, the EF19-18.9 maintains its accuracy even in hot industrial cabinets or fluctuating environments.

Integrated Safety: Features a built-in trip indicator and a test/stop button for rapid troubleshooting and maintenance.

Direct Contactor Mount: Fits perfectly onto the load side of AF09, AF12, AF16, AF26, AF30, and AF38 contactors.
