EOCRSE2-60NS

نقطة مساعدة للكونتاكتور (1NO+1NC-2A)

نقطة مساعدة للكونتاكتور (1C/O-2A)

كونتاكتور صامت CT - NO
1P 25 A

كونتاكتور صامت CT - NO 2P * 25 A
A9C20732
Acti9 iCT is a modular contactor. It is a 2P remote control device with 2 normally open contact. The In rated current is 25A for AC-7a and 8.5A for AC-7b
Schneider Electric

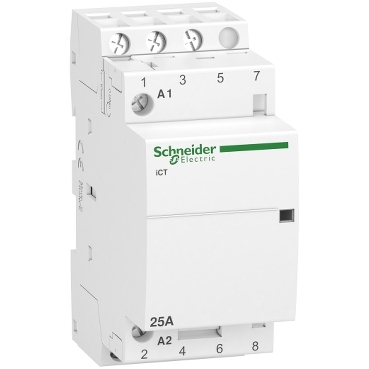

كونتاكتور صامت CT - NO 3P * 25 A
A9C20833
Acti9 iCT is a modular contactor. It is a 3P remote control device with 3 normally open contacts. The In rated current is 25A for AC-7a and 8.5A
Schneider Electric

كونتاكتور صامت CT - NO 4P * 25 A
A9C20834
Schneider Electric Acti9 iCT is a modular contactor. It is a 4P remote control device with 4 normally open contact. The In rated current is 25A for AC-7a and 8.5A for AC-7b.

كونتاكتور صامت CT - NO 2P * 40 A
Schneider Electric Acti9 iCT is a modular contactor. It is a 2P remote control device with 2 normally open contacts. The rated current is 40A for AC-7a and 15A for AC-7b.

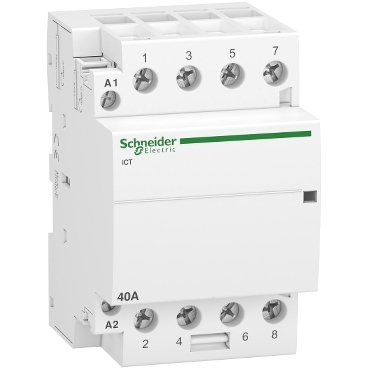

كونتاكتورصامت CT - NO 4P * 40 A
Schneider Electric Acti9 iCT is a modular contactor. It is a 4P remote control device with 4 normally open contacts. The rated current is 40A for AC-7a and 15A for AC-7b.

كونتاكتور صامت CT - NO 2P * 63 A
A9C20862 Schneider Electric Acti9 iCT is a modular contactor. It is a 2P remote control device with 2 normally open contacts. The rated current is 63A for AC-7a and 20A for AC-7b.

CT -3 NO 3P *63 A كونتاكتور صامت
A9C20863 Schneider Electric Acti9 iCT is a modular contactor. It is a 3P remote control device with 3 normally open contacts. The rated current is 63A for AC-7a and 20A for AC-7b.

كونتاكتور صامت CT - NO 4P * 63 A
A9C20864 Schneider Electic Acti9 iCT is a modular contactor. It is a 4P remote control device with 4 normally open contacts. The rated current is 63A for AC-7a and 20A for AC-7b.

CT - NO 2P * 100 A كونتاكتور صامت
A9C20882 Schneider Electric iCT 100A 2NO 220...240V 50Hz contactor

CT - NO 4P * 100 A كونتاكتور صامت
A9C20884 Schneider Electric Acti9 iCT is a modular contactor. It is a 4P remote control device with 4 normally open contact. The In rated current is 100A for AC-7a.

EOCR-SE2 05 N 24~240V Standard

Range of product - EOCR
Device short name - EOCR-3D420
Product or component type - Protection relay
Protection type - Overload, In > OC setting
Sensitivity to phase loss
Sensitivity to phase reverse
Locked rotor, In > 3 times OC setting
Phase unbalance, 50 %

Product specific application - Overcurrent protection
Analogue output range - 4...20 mA
Network type - AC
Network frequency - 50...60 Hz
protection ajustment range - 0.5…10 A
Tripping threshold - 0.5...6 A

LC1D09E7
3P CONT 9A AC3 4KW 1NO 1NC 48VAC COIL

LC1D09F7
3P CONT 9A AC3 4KW 1NO 1NC 110VAC COIL

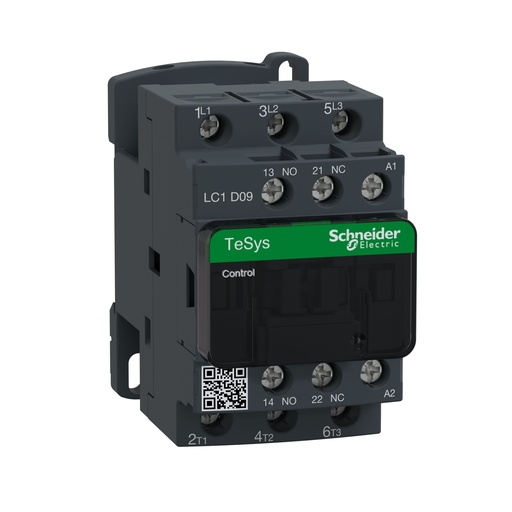

Schneider Electric LC1D09M7 TeSys D 3‑Pole Contactor (9 A – 220 VAC Coil)
The Schneider Electric LC1D09M7 is a premium TeSys D-series, 3‑pole (3 NO) industrial contactor designed for reliable motor control and AC switching applications. Engineered for performance and endurance, it offers:
Rated Current: 9 A (AC‑3), 25 A (AC‑1) up to 440 VAC
Motor Power Capacity: Up to 5.5 kW (400–690 VAC) or 5 HP @ 460 VAC under AC‑3 duty
Coil Voltage: Standard 220 VAC at 50/60 Hz
Durability: 2 million mechanical cycles at AC‑3; 15 million mechanical operations
Certification & Safety: UL, CSA, CCC, GL, DNV, GOST compliant; IEC 60947‑4‑1, IEC 60947‑5‑1 rated impulse withstand 6 kV
Built-In Auxiliary Contacts: 1x No + 1x Nc—ideal for control circuitry
Mounting Style: DIN-rail or panel mount; screw-clamp terminals (1–4 mm² cabling)
As part of the versatile TeSys D lineup, this Schneider Electric-manufactured contactor supports a broad array of industrial automation and motor starter solutions, and accommodates add-ons like overload relays (LRD) and auxiliary blocks. Its compact design, high endurance, and multi-standard approvals make it a top choice for control panels, HVAC systems, and manufacturing machinery.
Country of Origin: France
