NSX 100B - 3P 3T - TM UP to-100 25KA

ComPact NSX New Generation

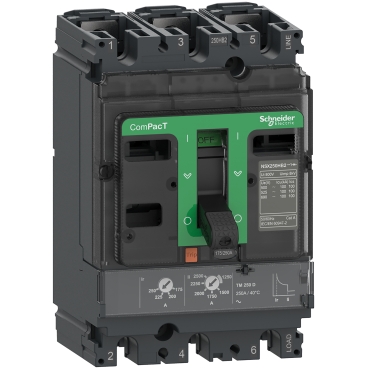

Schneider Electric NSX100F Circuit Breaker
Thermal-Magnetic
36KA

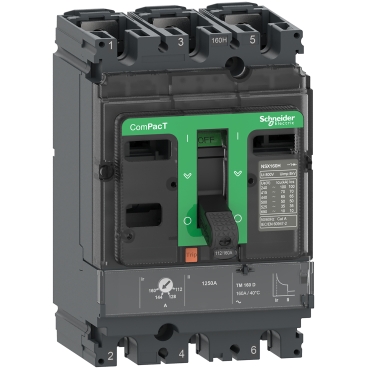

Circuit breaker ComPacT NSX100H, 70kA at 415VAC, MA trip unit 100A, 3 poles 3d

Circuit breaker ComPacT NSX160F, 36kA at 415VAC, TMD trip unit 125A, 3 poles 3d

Circuit breaker, ComPacT NSX160F, 36kA/415VAC, 3 poles, TMD trip unit 160A

Circuit breaker, ComPacT NSX250F, 36kA/415VAC, 3 poles, TMD trip unit 160A

Circuit breaker ComPacT NSX250F, 36kA at 415VAC, TMD trip unit 250A, 3 poles 3d

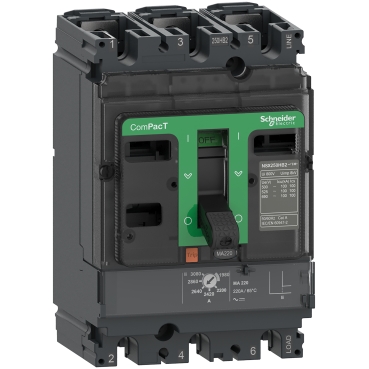

Circuit breaker ComPacT NSX250H, 70kA at 415VAC, TMD trip unit 250A, 3 poles 3d

Circuit breaker ComPacT NSX400H, 70kA at 415VAC, MicroLogic 2.3 trip unit 400A, 3 poles 3d

Circuit breaker ComPacT NSX400N, 50kA at 415VAC, MicroLogic 2.3 trip unit 400A, 3 poles 3d

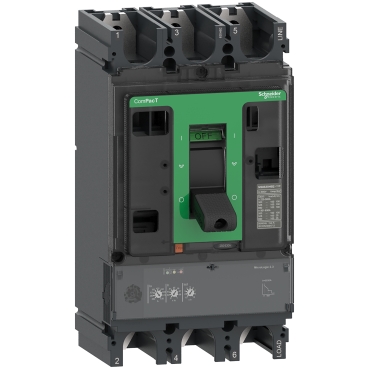

Circuit breaker, ComPacT NSX630F, 36kA/415VAC, 3 poles, MicroLogic 2.3 trip unit 630A

EZC100 H - 3P (50/60) 30KA - Fixed
EZC100H3100
Schneider Electric Egypt

Schneider GoPact G12F3A125 is a robust 3-pole molded case circuit breaker (MCCB) designed to provide dependable electrical protection for power distribution systems. With a 125A frame rating and a 30kA breaking capacity, it is ideally suited for commercial buildings, small industrial facilities, and infrastructure projects.

Schneider GoPact G12F3A50 is a versatile 3-pole Molded Case Circuit Breaker (MCCB) designed for essential power distribution and circuit protection. With a 50A rating and a 30kA breaking capacity, it provides robust defense for small motors, HVAC units, and feeder circuits in residential and commercial buildings.

This model is equipped with a Thermal-Magnetic (TMD) trip unit that includes adjustable thermal protection. This allows users to manually set the trip threshold between 35A and 50A, providing precision protection tailored to specific load requirements. Its compact size and durable construction ensure it fits perfectly into modern electrical panels while offering a long-term, maintenance-free service life.

Key Technical Features:

50A Current Rating: Optimized for smaller loads and sub-distribution protection.

30kA Breaking Capacity: High interruption performance to safely clear electrical faults.

Adjustable Thermal Settings: Flexibility to tune the overload protection between 35A and 50A.

Proven TMD Technology: Reliable thermal-magnetic mechanism for overload and short-circuit protection.

Standard GoPact 125 Frame: Uniform dimensions across the range (16A to 125A) for easier panel standardization.

Schneider GoPact G12F3A80 is a robust 3-pole Molded Case Circuit Breaker (MCCB) engineered for reliable power distribution and motor protection. Rated at 80A with a breaking capacity of 30kA at 415VAC, it is ideal for protecting sub-distribution boards in small-to-medium buildings and industrial workshops.

This model features a Thermal-Magnetic (TMD) trip unit with adjustable thermal protection, giving panel builders the flexibility to fine-tune the protection settings based on the actual load. Built for durability and ease of use, the GoPact range ensures Schneider’s safety standards are accessible for every project budget. Its compact frame and simple installation make it a top choice for contractors looking for a reliable "fit-and-forget" solution in Egypt.

Key Technical Features:

80A Current Rating: Perfectly sized for protecting feeder circuits and medium-sized machinery.

30kA Breaking Capacity: High interruption rating to safely handle significant short-circuit faults.

Adjustable Thermal Setting: Allows customization of the overload trip point between 56A and 80A.

Reliable TMD Technology: Proven thermal-magnetic trip unit for both overload and instantaneous short-circuit protection.

Compact GoPact 125 Frame: Optimized dimensions for modern, space-efficient electrical enclosures.
