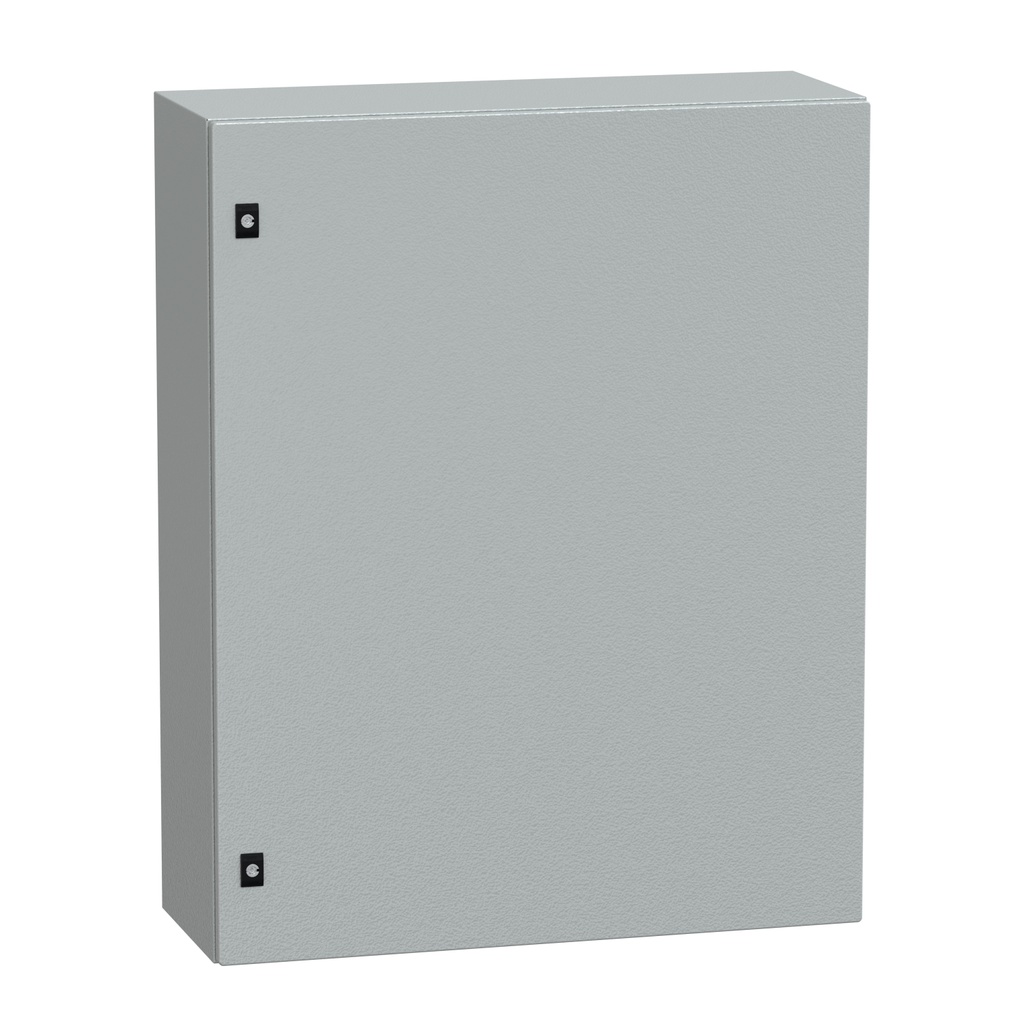

NSYCRN108300 | Schneider Electric Spacial CRN plain door w/o mount.plate. H1000xW800xD300 IP66 IK10 RAL7035..

Schneider Spacial CRN (NSYCRN108300) is a professional-grade wall-mounted steel enclosure engineered for the most demanding industrial environments. With dimensions of 1000x800x300 mm, it offers massive internal space for housing high-power motor drives (VFDs), large contactor banks, and integrated PLC systems.

Constructed from a single folded and welded steel sheet, it features a double-thickness gutter-shaped front rail to maintain its IP66 seal against high-pressure water and dust. The exterior is protected by a textured RAL 7035 light grey epoxy-polyester powder coating for maximum corrosion resistance. Sold without a mounting plate, it provides a high-volume blank canvas for custom panel building and heavy-duty industrial wiring.

Key Technical Features:

Industrial Scale Protection: Rated IP66 (waterproof and dust-tight) and IK10 for the highest level of mechanical impact protection.

Extra Deep 300mm Frame: Ideal for components with large heat sinks and provides extra room for thick cable bending radii.

Professional Door Construction: Features a plain, reversible steel door with a 120° opening angle and a high-security 3mm double-bar lock.

Optimized Cable Management: Equipped with two large, removable cable gland plates at the bottom for flexible entry of multiple power and control cables.

Corrosion Resistance: High-durability finish designed for long life in industrial plants, chemical sites, and outdoor installations.
