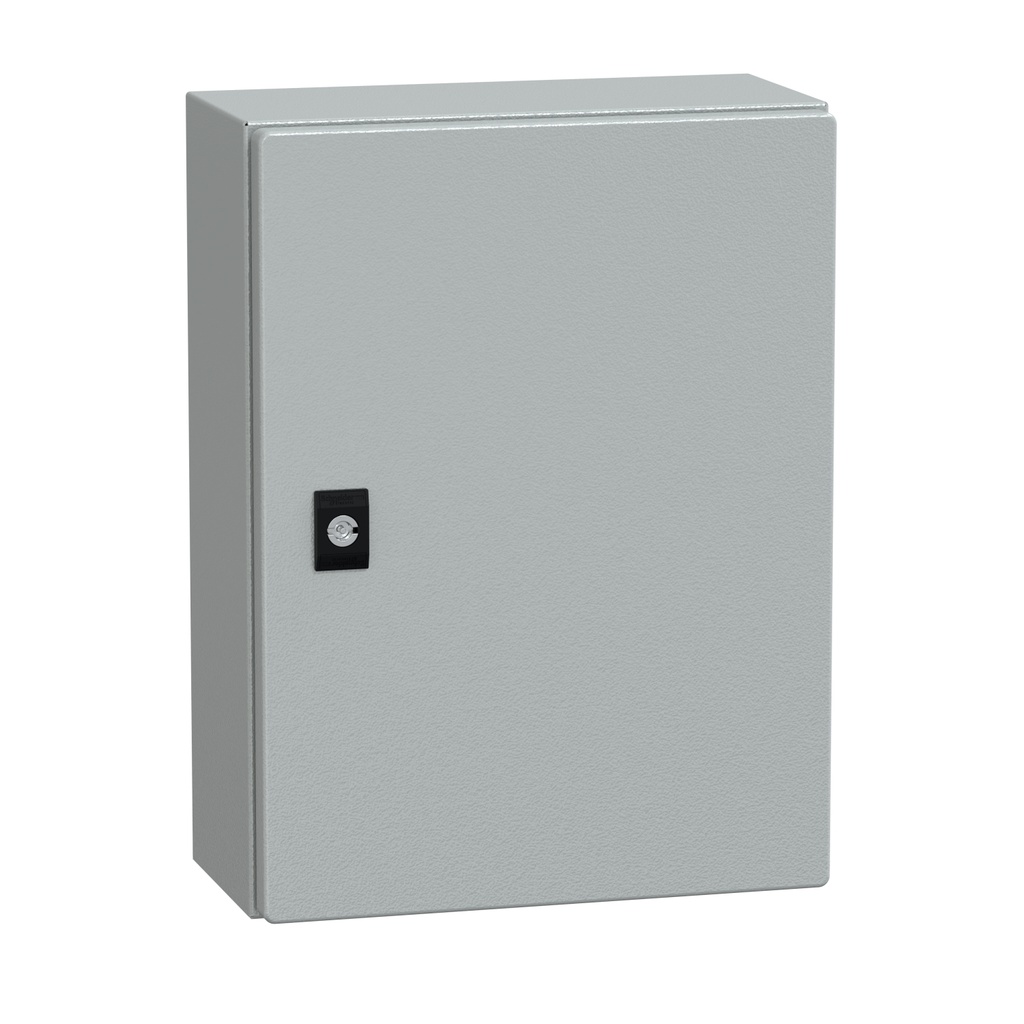

NSYCRN43150 | Schneider Spacial CRN Steel Enclosure | H400xW300xD150, IP66, IK10, No Mounting Plate

Schneider Spacial CRN (NSYCRN43150) is a wall-mounted universal enclosure engineered for maximum protection in space-constrained industrial environments. Built from a single folded and welded sheet of high-quality steel, it provides an airtight and watertight seal for your critical electrical components.

Finished in a professional RAL 7035 light grey epoxy-polyester powder, this enclosure is highly resistant to corrosion and chemical exposure. This version is supplied without a mounting plate, offering panel builders a blank slate to install custom DIN rails, perforated plates, or specialized electronic chassis.

Key Technical Features:

Elite Environmental Shield: Rated IP66 for total protection against dust and high-pressure water jets, and IK10 for the highest level of mechanical impact resistance.

Gutter-Front Design: Features a double-thickness front rail that acts as a gutter, preventing water, oil, or dust from entering the enclosure when the door is open.

Flexible Access: The plain steel door is fully reversible (120° opening) and secured by a standard 3mm double-bar lock.

Simplified Wiring: Includes a removable cable gland plate at the bottom for easy drilling and professional entry of wiring.

Compact Rigidity: Despite its smaller footprint, the welded monobloc construction ensures long-term structural integrity in high-vibration areas.
