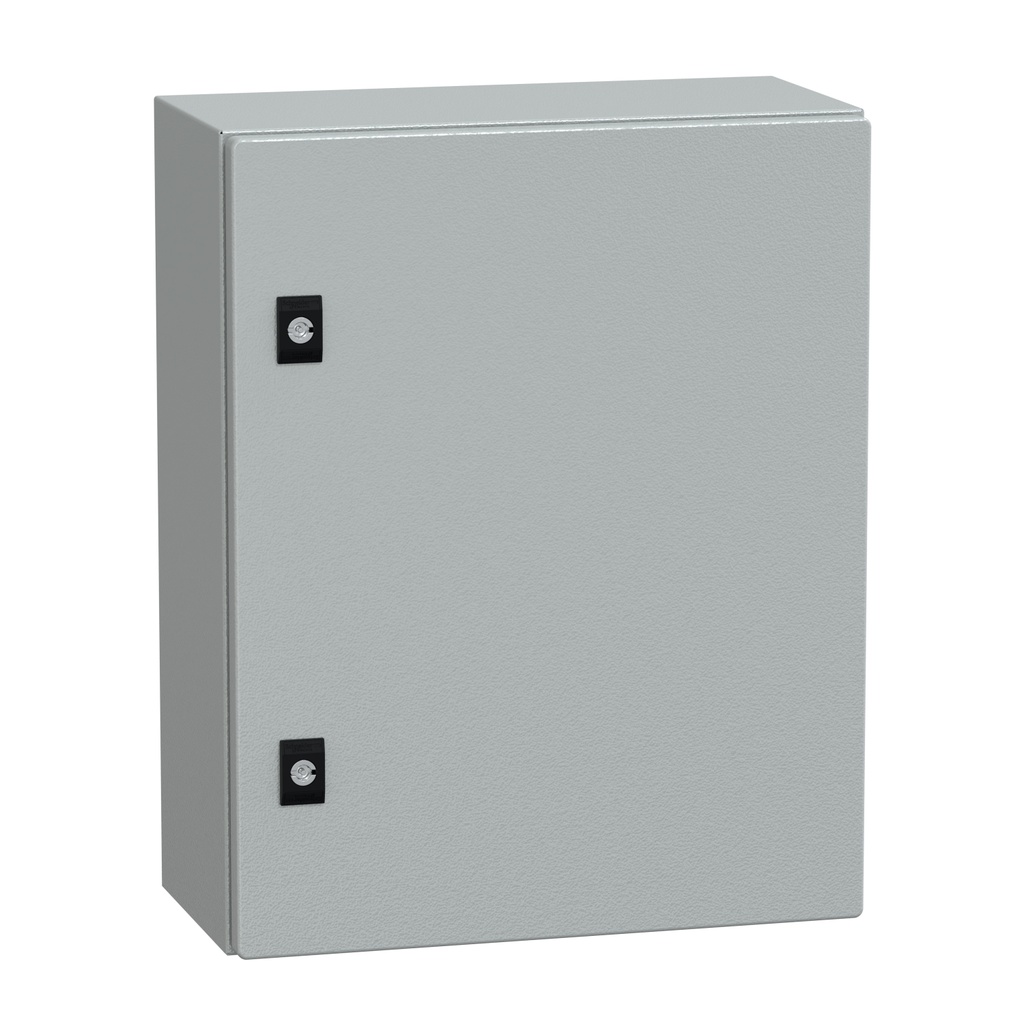

NSYCRN54200 | Schneider Spacial CRN Steel Enclosure | H500xW400xD200, IP66, IK10, No Mounting Plate

Schneider Spacial CRN (NSYCRN54200) is a wall-mounted universal enclosure engineered for harsh environments. With dimensions of 500x400x200 mm, it provides ample space for complex automation and power distribution assemblies. Built from a continuous high-quality welded steel sheet, it guarantees a watertight and dust-tight seal.

This enclosure is finished with a textured RAL 7035 light grey epoxy-polyester powder coating, providing excellent protection against chemicals and corrosion. Sold without a mounting plate, it offers full customization for engineers who prefer to use perforated plates, DIN rail chassis, or custom internal layouts.

Key Technical Features:

Superior Sealing: Rated IP66, ensuring the internal electronics remain completely dry even when subjected to powerful water jets or heavy dust.

Impact Resistance: Rated IK10, providing the highest level of protection against external mechanical impacts and vandalism.

Smart Door Design: The plain door features a 120° opening angle and is fully reversible. It is secured by a 3mm double-bar lock.

Clean Cable Management: Equipped with a removable cable gland plate at the bottom for easy drilling and neat cable entry.

Corrosion Protection: The steel body undergoes a multi-stage treatment process to ensure a long service life in industrial settings.
