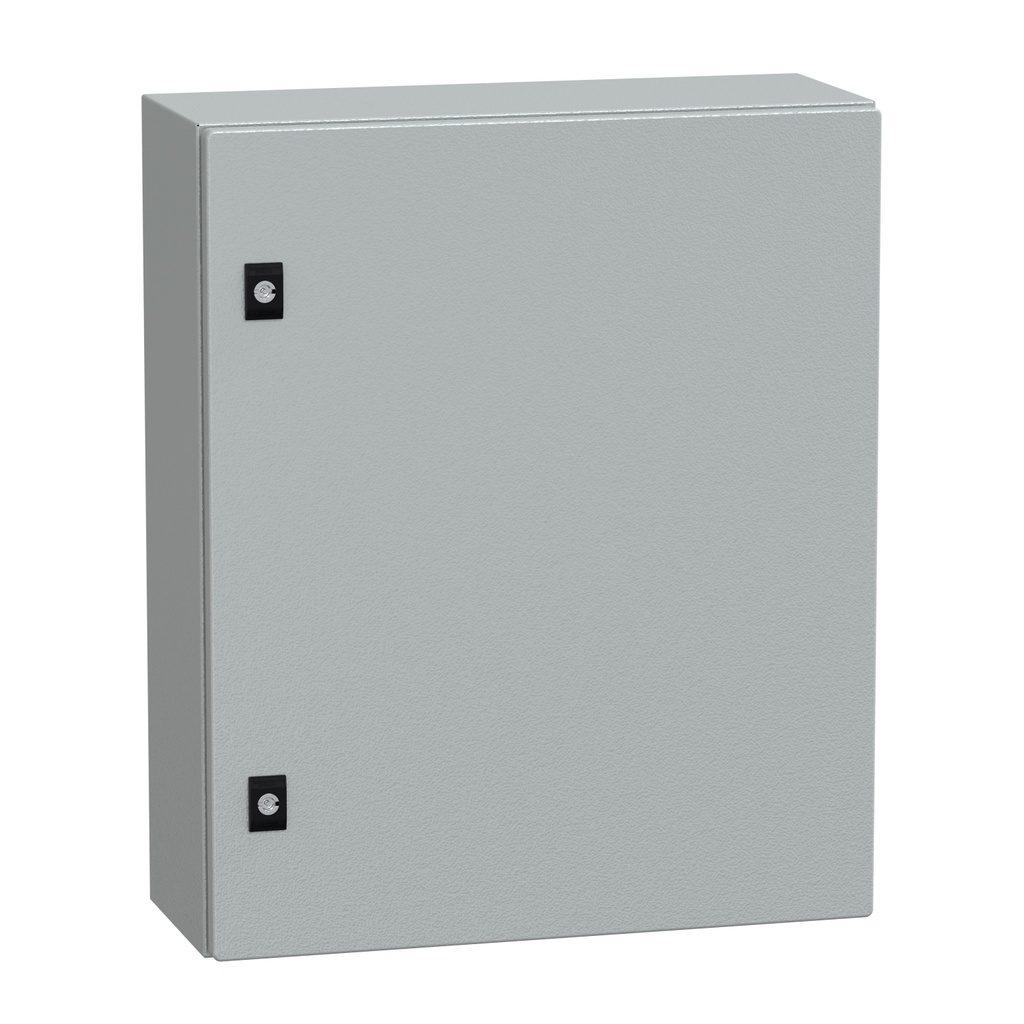

NSYCRN65200 | Schneider Spacial CRN Steel Enclosure | H600xW500xD200, IP66, IK10, No Mounting Plate

The Schneider Spacial CRN (NSYCRN65200) is a premium wall-mounted universal enclosure engineered to withstand harsh industrial environments. Its 600x500 mm footprint combined with a 200 mm depth provides ample room for deep-mounted components and efficient wire management.

Constructed from a single folded and welded steel sheet with a double-thickness gutter-shaped front rail, it ensures a superior watertight seal. The enclosure is finished with a textured RAL 7035 light grey epoxy-polyester powder, offering excellent resistance to corrosion and UV. This model is supplied without a mounting plate, allowing for complete interior customization.

Key Technical Features:

Total Protection: Rated IP66 (dust-tight and protected against powerful water jets) and IK10 (maximum mechanical impact resistance).

Robust Build: Features a high-integrity welded frame and a reinforced plain door for long-term industrial reliability.

Flexible Access: The reversible door opens to 120° and is secured by a standard 3mm double-bar lock.

Efficient Cabling: Includes a large, removable cable gland plate at the bottom for easy drilling and entry of wiring.

Quality Finish: Textured RAL 7035 powder coating provides high chemical resistance and a professional aesthetic.
