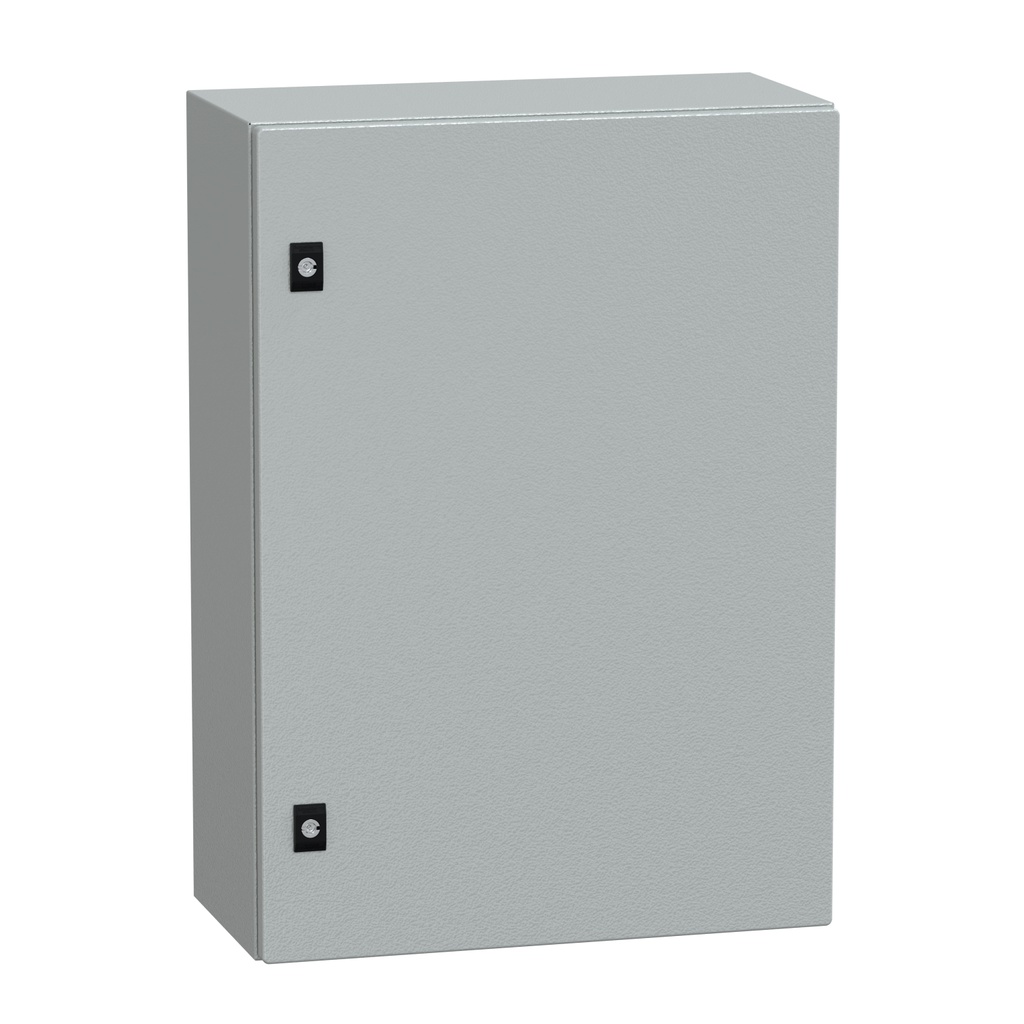

NSYCRN75250 | Schneider Spacial CRN Steel Enclosure | H700xW500xD250, IP66, IK10, No Mounting Plate

Schneider Spacial CRN (NSYCRN75250) is a wall-mounted universal steel enclosure built to safeguard critical equipment in demanding environments. Featuring a generous 250 mm depth, this model is specifically engineered to accommodate deep-frame contactors, cooling units, and large VFDs.

Constructed from a high-quality folded and welded single sheet of steel, it features a double-thickness front rail to prevent water or dust entry even when the door is opened. The enclosure is finished in a textured RAL 7035 light grey epoxy-polyester powder, ensuring superior resistance to chemicals and outdoor elements. Sold without a mounting plate, it offers engineers the ultimate blank canvas for custom industrial designs.

Key Technical Features:

Total Environmental Shield: Rated IP66 for complete protection against fine dust and high-pressure water jets.

Mechanical Durability: Rated IK10, the highest standard for protection against external mechanical impacts.

Deep Internal Space: The 250 mm depth facilitates better air circulation and fits components that standard 150mm or 200mm boxes cannot.

Professional Door Design: Plain reversible steel door with a 120° opening and a secure 3mm double-bar lock.

Integrated Gland Plate: Features a removable cable gland plate at the bottom for quick, professional wiring entry.
