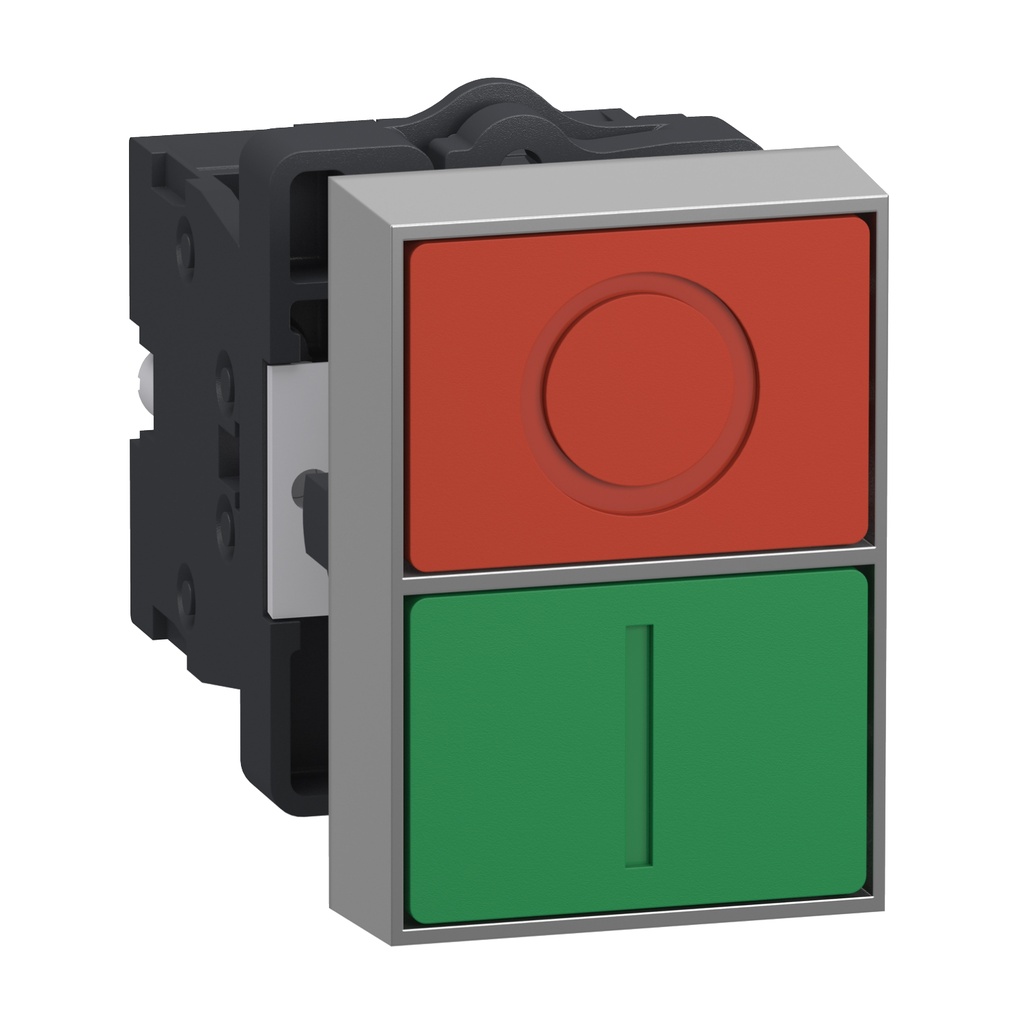

XA2EA7A3415 | Schneider Harmony Double-headed push button, Easy Harmony XA2, plastic, 22mm, 1 green flush marked I + 1 red flush marked O, 1NO + 1NC

Schneider XA2EA7A3415 is a complete, ready-to-install control unit from the cost-effective Easy GX2 range. This "Double-Touch" button features a Green flush button (I) and a Red flush button (O) in a single vertical housing. By combining two critical commands into one Ø22mm cut-out, it allows panel builders to reduce the size of their control interfaces significantly.

Manufactured from high-impact industrial plastic, the XA2 series is engineered for durability and longevity. This unit comes pre-assembled with a 1NO (Normally Open) contact for the green side and a 1NC (Normally Closed) contact for the red side. It is the perfect solution for motor starters, small machinery, and conveyor systems where space is at a premium but reliability is non-negotiable.

Key Technical Features:

Dual-Functionality: Integrates Start and Stop commands into a single standard 22mm mounting diameter.

Complete Unit: Includes the dual-operator head, fixing collar, and both 1NO and 1NC contact blocks.

Clear Identification: Features industry-standard "I" (Start) and "O" (Stop) markings on the button faces.

Space-Saving Design: Reduces panel drilling and wiring time by consolidating two operators into one.

Industrial Durability: Rated IP54, providing protection against dust and water splashes in standard industrial environments.
