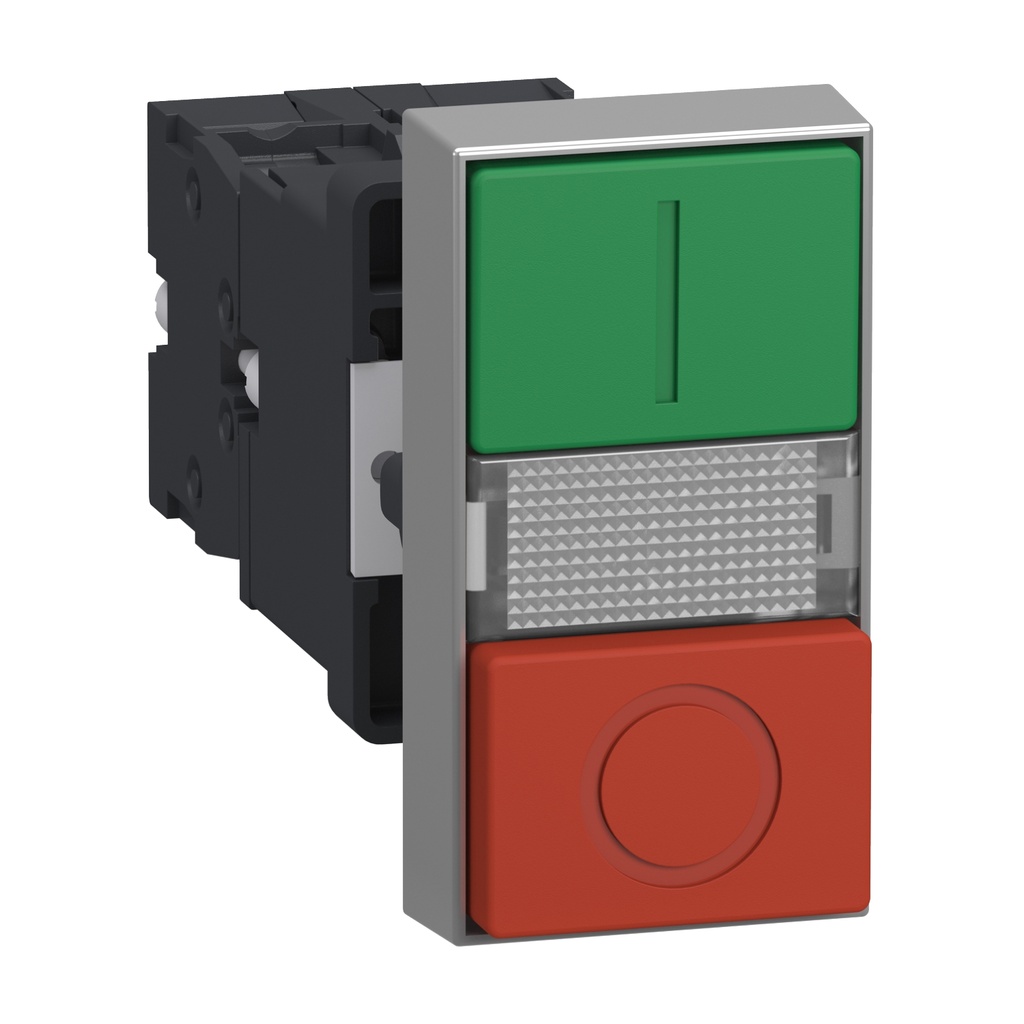

XA2EW7L3741M5 | Schneider Harmony Illuminated double headed push button, Easy Harmony XA2, plastic, 22mm, 1 green flush I + 1 light + 1 red flush O, 220…230V AC, 1NO + 1NC

Schneider XA2EW7L3741M5 is an all-in-one control interface from the Easy GX2 range. This "Double-Touch" button features a Green flush button (Start) and a Red flush button (Stop), separated by a central Amber/Orange LED indicator. This design allows operators to manage a motor or process cycle and see the status signal using only one panel cut-out.

Supplied as a complete unit, it includes a 1NO contact (for the green side), a 1NC contact (for the red side), and an integrated 220V AC LED. Built with high-impact industrial plastic, it is designed for high-density control panels where saving space is critical without sacrificing Schneider’s legendary reliability.

Key Technical Features:

3-in-1 Design: Combines Start, Stop, and Status Indication (LED) in a single Ø22mm mounting diameter.

Integrated 220V LED: Features a central amber pilot light for clear visual feedback of the machine status.

Ready-to-Wire: Comes complete with 1NO (Normally Open) and 1NC (Normally Closed) contact blocks.

Standard 22mm Mounting: Fits standard panel holes, significantly reducing the size of the control station.

IP54 Protection: Rated for protection against dust and water splashes, suitable for most indoor industrial applications.
