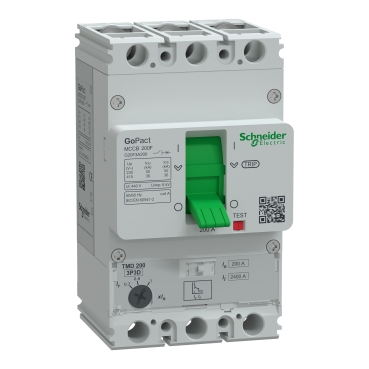

Circuit breaker, GoPact MCCB 200, 3 poles, 36kA at 415VAC, 200A rating, TMD trip unit, adjustable thermal protection

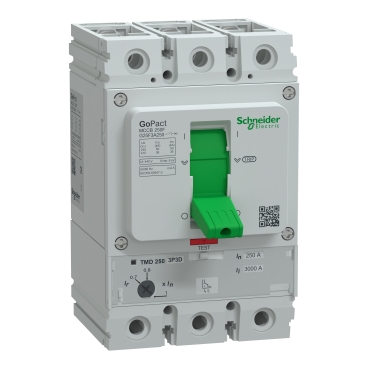

Schneider Electric. G25F3A250 - Circuit breaker, GoPact MCCB 250, 3 poles, 36kA at 415VAC, 250A rating, TMD trip unit, adjustable thermal protection.

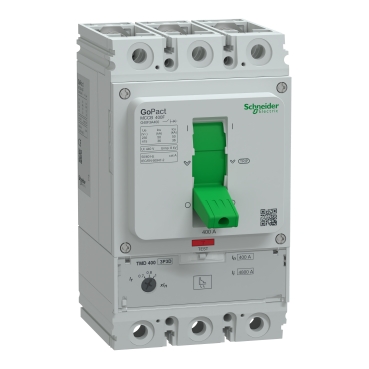

The Schneider Electric G40F3A400 is a robust 3-pole Molded Case Circuit Breaker (MCCB) from the versatile GoPact 400 range. Engineered for high-load distribution, this breaker is rated at 400A with a 36kA breaking capacity, making it ideal for main distribution boards in Egyptian industrial facilities, commercial complexes, and residential towers.
This model features a Thermal-Magnetic (TMD) trip unit with an adjustable thermal protection range allowing for field adjustments between 280A and 400A. This flexibility is crucial for engineers in Egypt who need to fine-tune protection based on varying motor loads or ambient temperatures. The GoPact series provides the trusted Schneider Electric quality assurance in a compact, easy-to-install frame, ensuring maximum uptime and safety for your electrical infrastructure.

Key Technical Features for High Ranking:

400A Frame Size: High-capacity protection for main feeders and large industrial machinery.
36kA Breaking Capacity: Reliable performance during high-level short-circuit events.
Adjustable Thermal Setting: Precise protection tuning from 280A to 400A to prevent nuisance tripping.
Compact Footprint: Modern design that saves valuable space in power distribution panels.

Brand: Schneider Electric
Part Number: G40F3A400
Series: GoPact MCCB 400
Type: Molded Case Circuit Breaker
Poles: 3P
Rated current: 400A
Breaking capacity: 36kA at 415VAC
Trip unit: TMD
Thermal protection: Adjustable
Certified Quality: Fully compliant with IEC 60947-1 and IEC 60947-2 standards for global and local safety.
